Upload files from the local file system to Amazon S3

1. Introduction

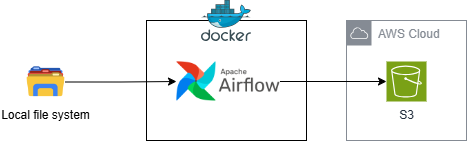

In this example we will upload files(eg: data_sample_240101) from the local file system to Amazon S3 using Airflow running in Docker


2. Prepare the environment

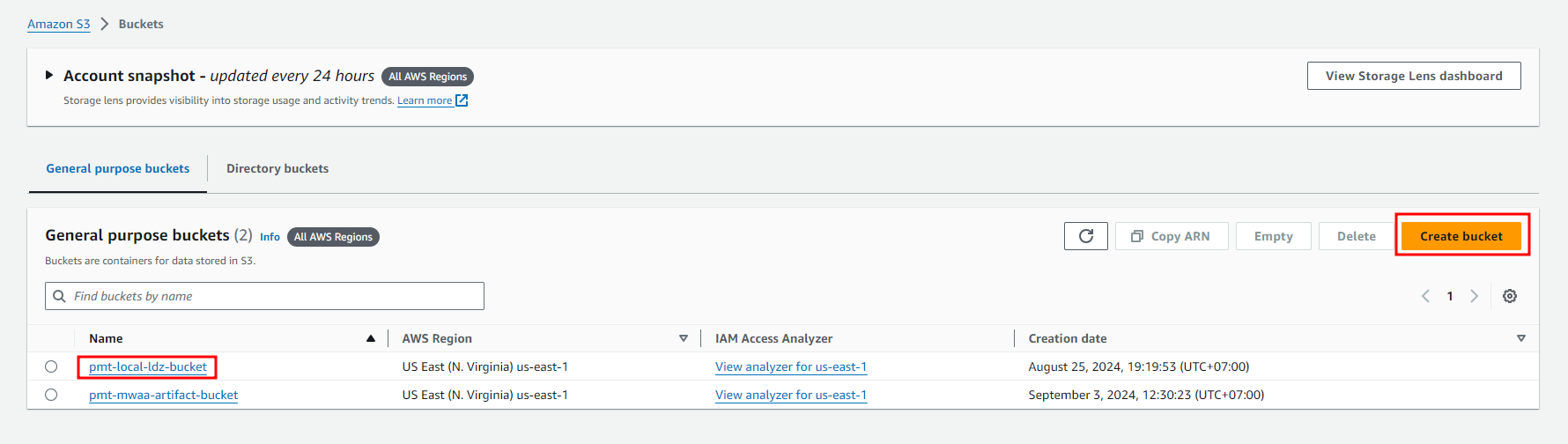

  1. S3 Bucket Landing

  2. IAM user

    • Access IAM console

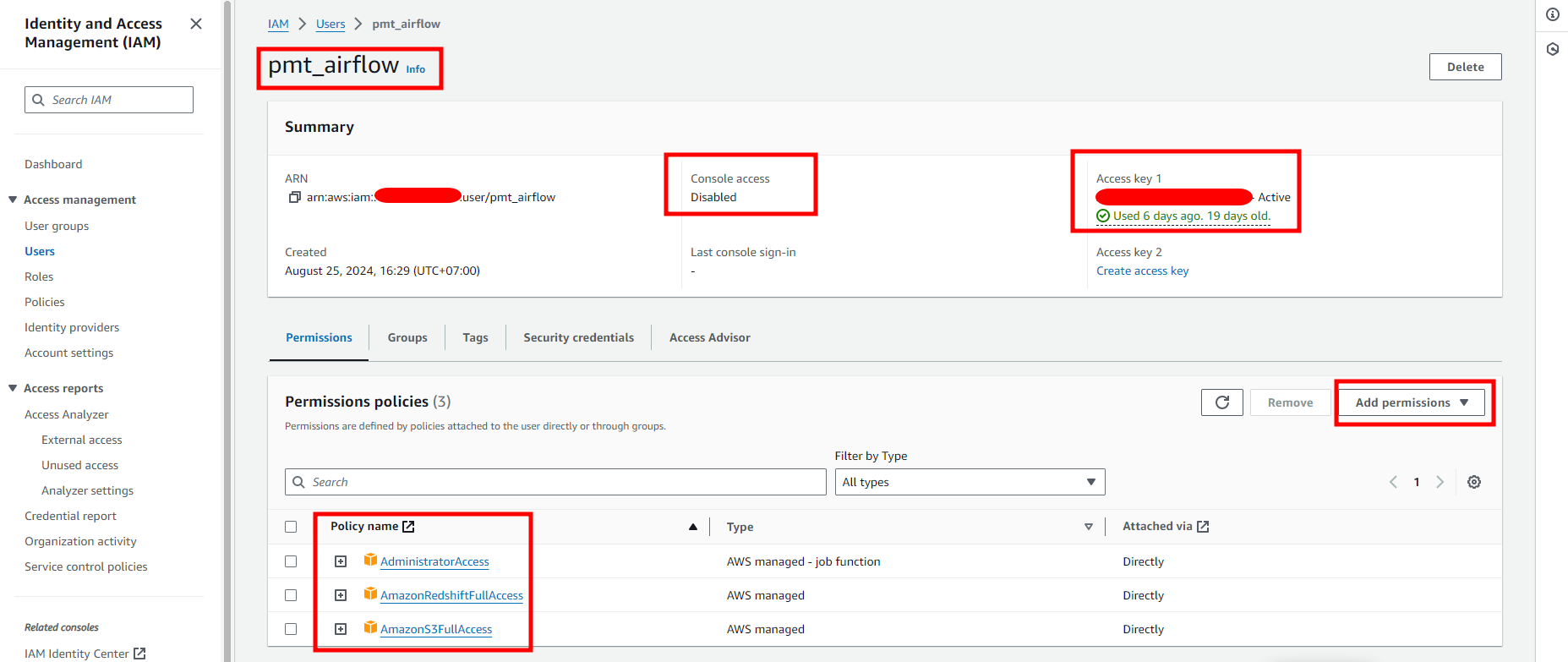

    • Create IAM user with S3 permission for Airflow


  3. Run Airflow

  4. Add AWS connection

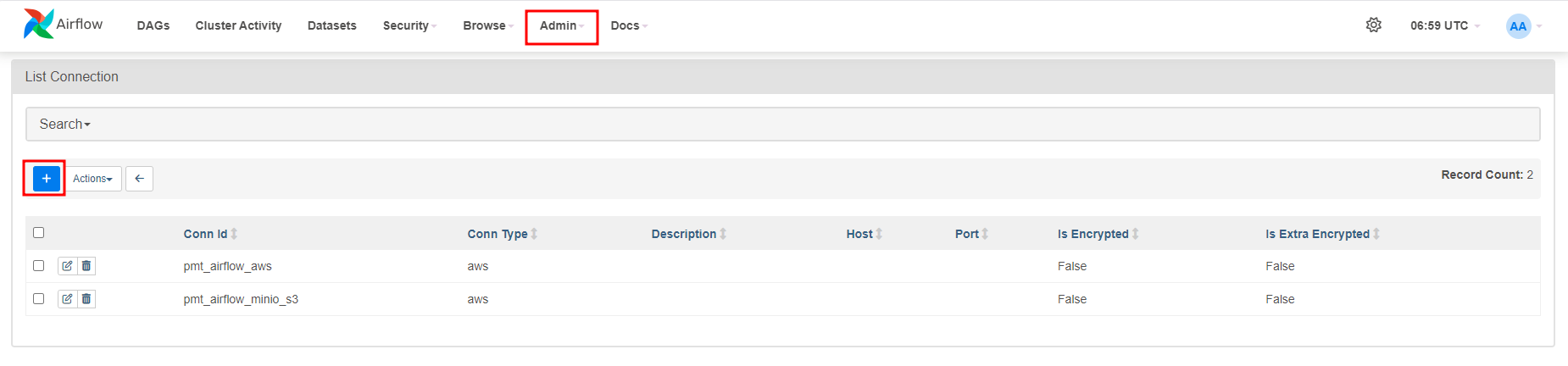

    • Access Admin/Connection

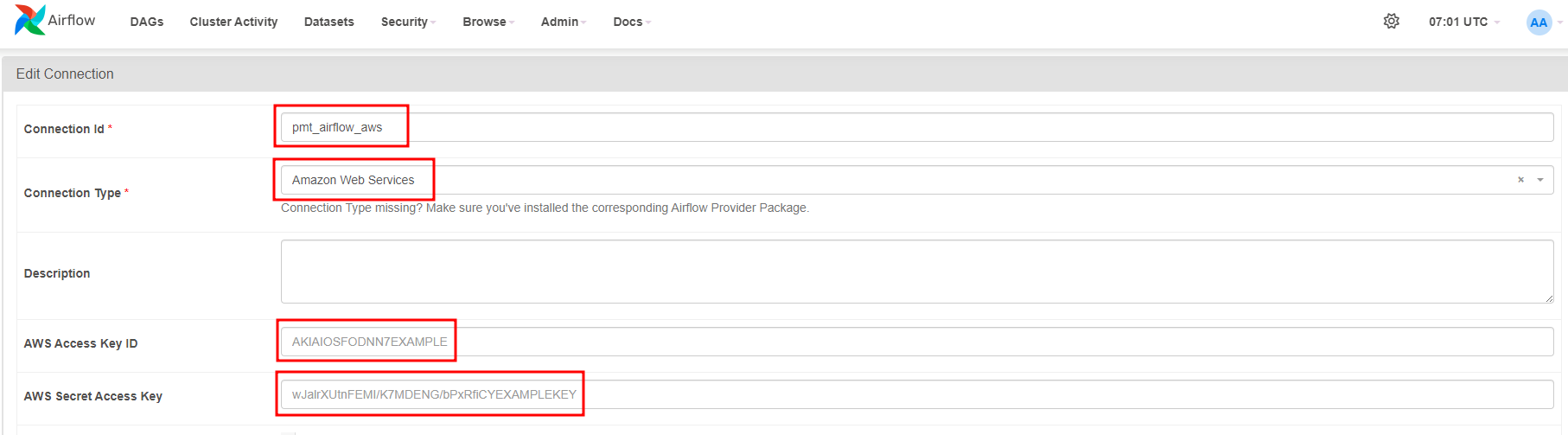

    • Create Connection AWS



3. Create Dag

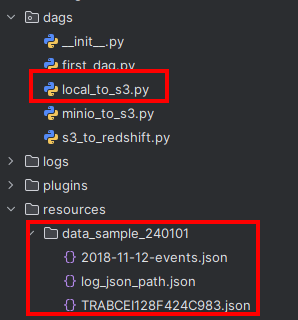

  • Create DAG and file upload to S3


    • DAG includes the following components:

      • Create dag

        default_args = {
          'owner': 'pmt',
          'start_date': pendulum.now(),
          'depends_on_past': False,
          'retries': 3,
          'retry_delay': timedelta(minutes=5),
          'catchup': False,
        }

        @dag(
          dag_id='local_to_s3',
          default_args=default_args,
          description='Load file from local file system to S3',
          schedule='@once'
        )

      • Create function execute() with operators

         def execute():
             end_operator = EmptyOperator(task_id='End_execution')

             files = []

             for file in glob.glob(f"/opt/airflow/data/data_sample_{DATE}/*"):
                 files.append(file)

             for idx, file in enumerate(files, start=1):
                 file_name = file.split("/")[-1]

                 transfer_operator = LocalFilesystemToS3Operator(
                     task_id="local_to_s3_" + str(idx),
                     filename=file,
                     dest_key=f"date={DATE}/{file_name}",
                     dest_bucket=S3_BUCKET_NAME,
                     replace=True,
                     aws_conn_id="pmt_airflow_aws"
                 )

      • Workflow operator

                 transfer_operator >> end_operator


4. Check result

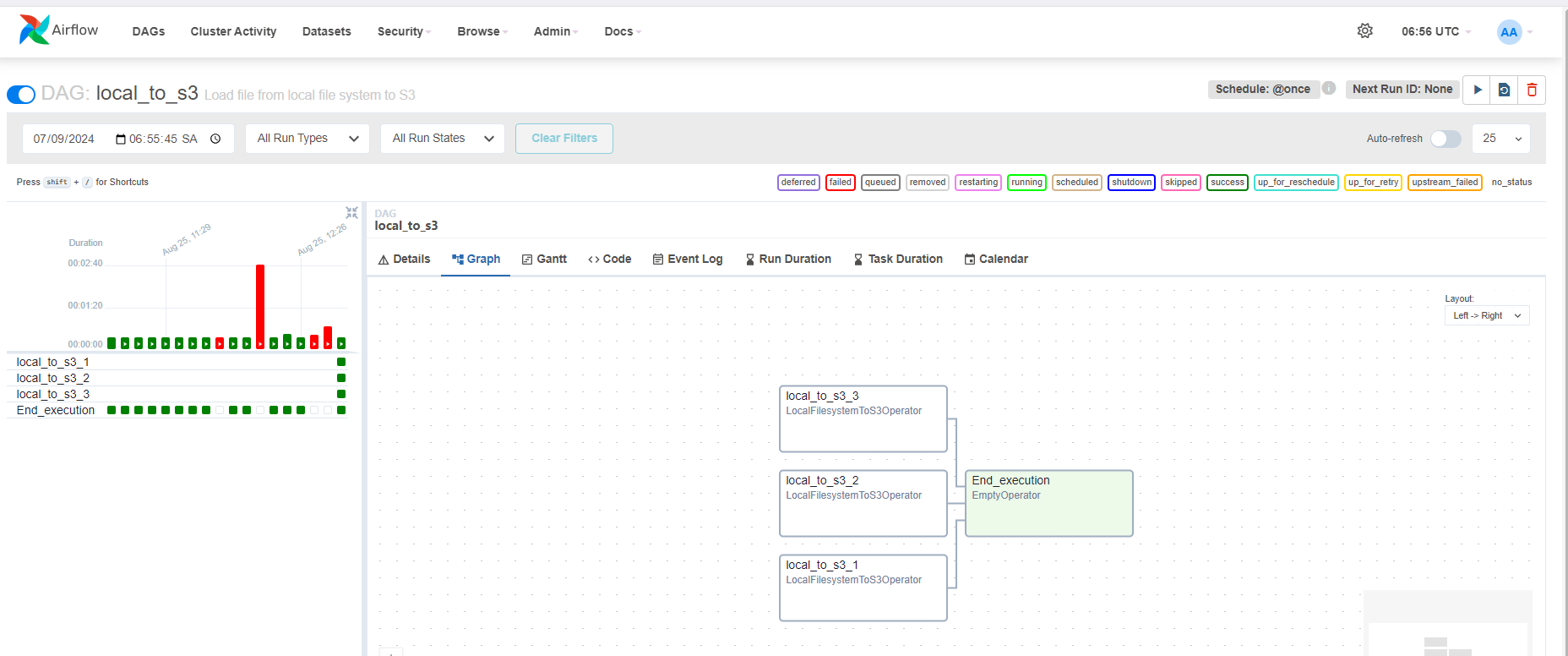

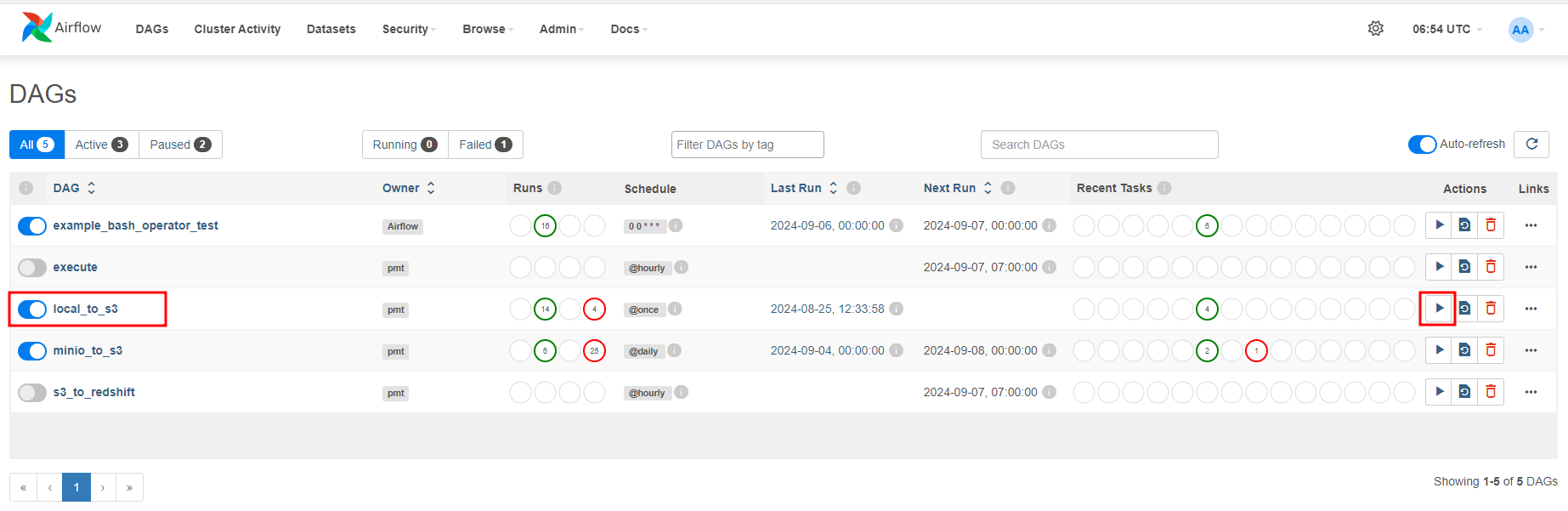

  1. DAG show in Airflow


  2. Run DAG

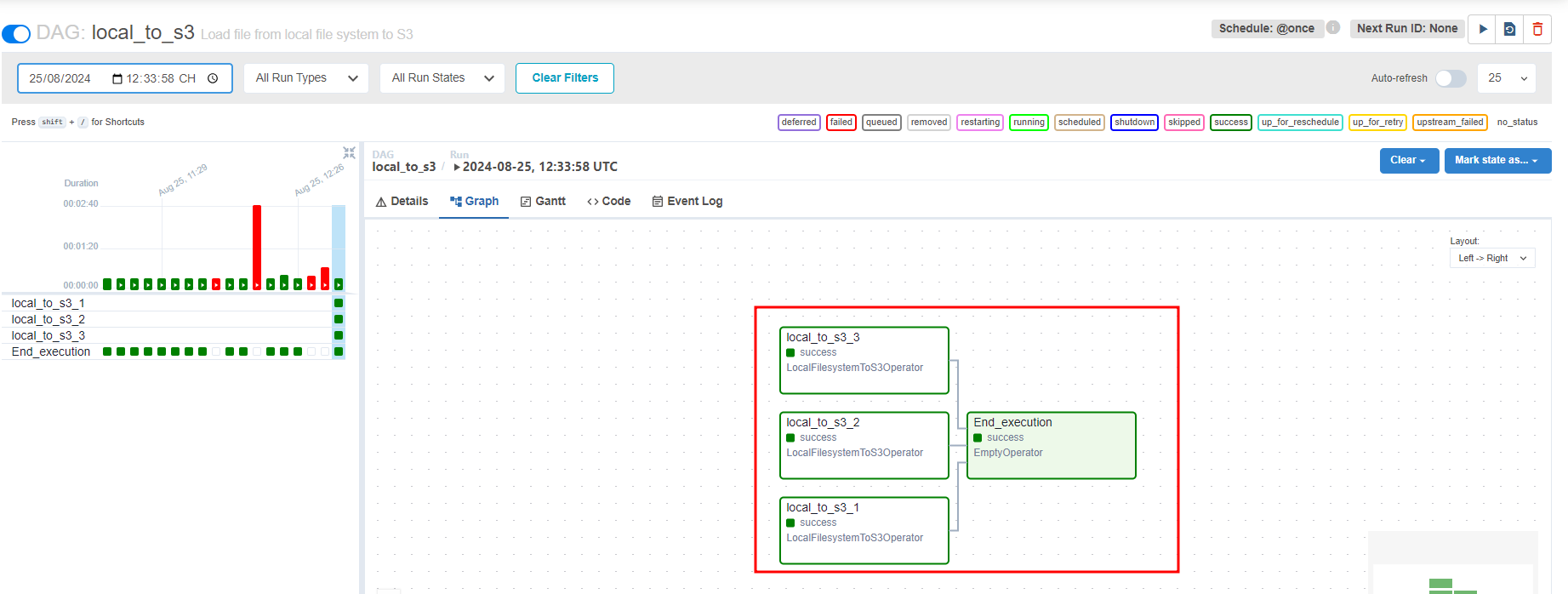

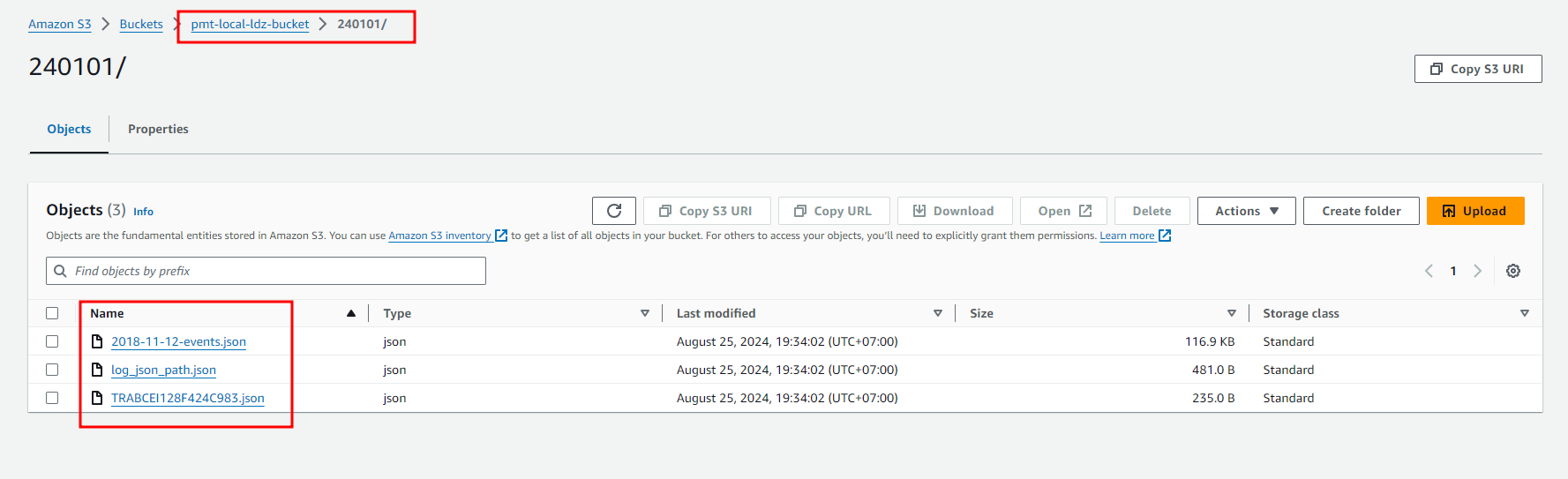

  3. Check result


5. Clean up

  1. Delete S3 Bucket
  2. Delete IAM user
  3. Delete Airlow on Docker
